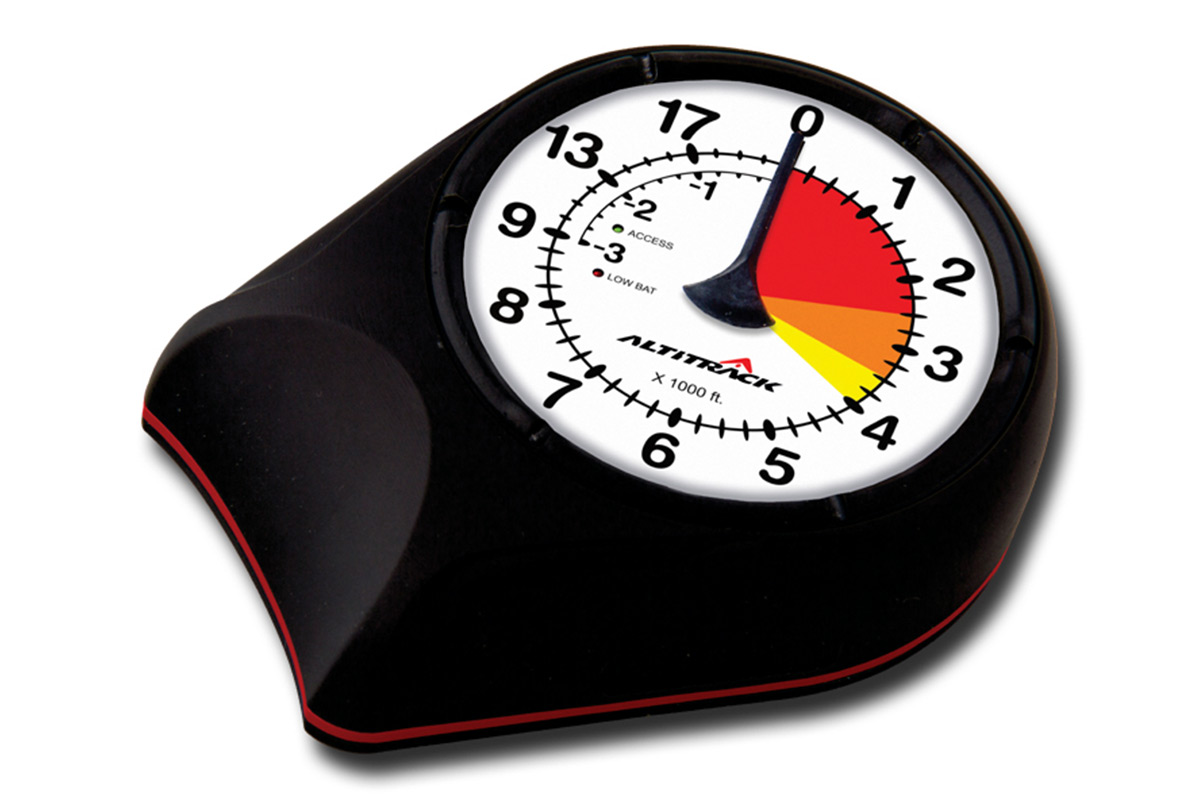

Military ALTITRACK Basic
LB Products
The Military ALTITRACK BASIC is the simplified version of the multi-function Military ALTITRACK.

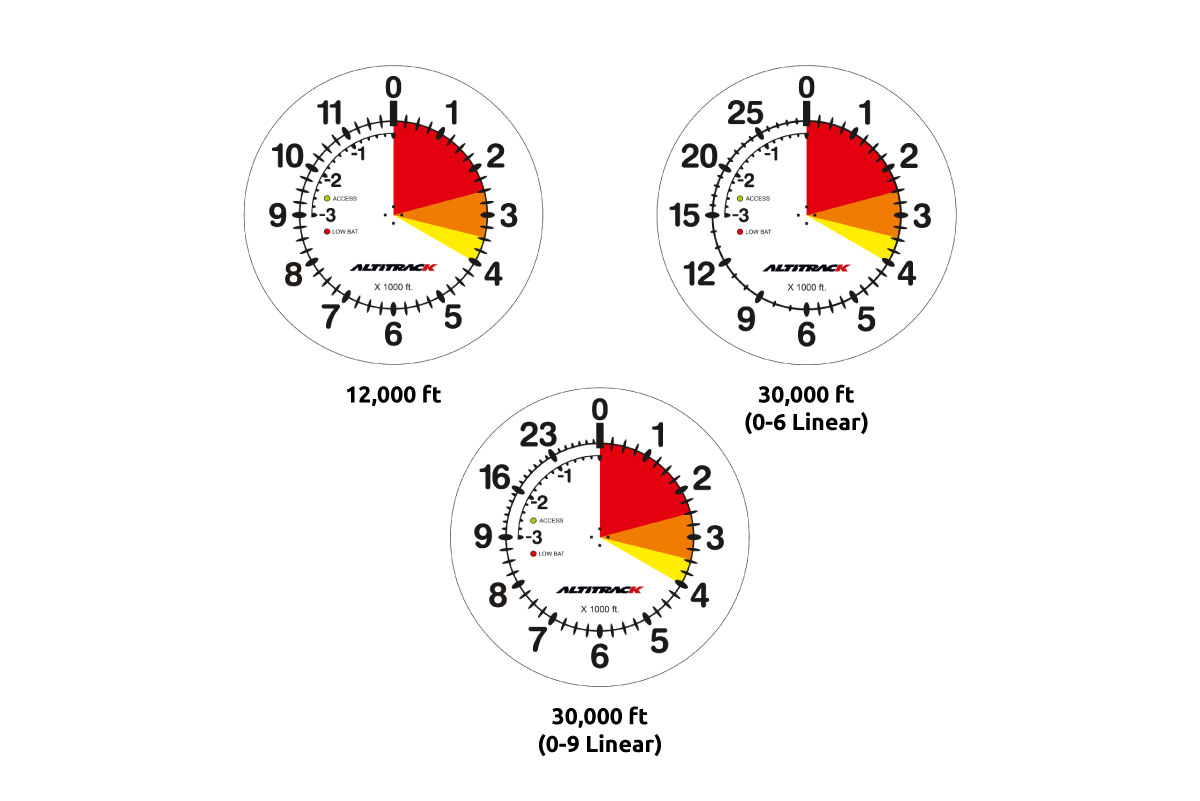

MILITARY ALTITRACK BASIC PART NUMBERS:
- P/N L338250-12 (12,000 ft)
- P/N L338250-12US (12,000 ft – Berry)
- P/N L338250-30 (30,000 ft, 0-6 Classic)
- P/N L338250-30US (30,000 ft, 0-6 Classic – Berry)
- P/N L338251-30 (30,000 ft, 0-9 Linear)
- P/N L338251-30US (30,000 ft, 0-9 Linear – Berry)
PRODUCT DESCRIPTION
The Military ALTITRACK BASIC has the same rugged durability and precision, but the IR receiver, front OLED, and back LCD screen have been removed.
The Military ALTIRACK BASIC comes standard with a Curved Arm Mount.
FEATURES:
- 45-degree offset scale for easy line of sight when mounted on hand or wrist.
- Easy and fast altitude offset.
- Adjustable backlight.
- Anodized aircraft grade aluminum case.
- High-impact etched glass lens.
- Choice of symmetric or asymmetric scale graduation in either feet or meters.
- Smooth, non-erratic pointer movement.
- Automatic calibration to local elevation.
- Shock resistant and waterproof (5ft/24 hours)
- Operating altitude: 0 to 40,000 ft. (0 to 12,191 m)
- Operational temperature: -35°C to +80°C.
- Uses ½ AA battery.
